Overview

Distributed File System (DFS) provides unified namespace access and multi-site replication for enterprise file services. When implemented correctly, DFS eliminates single points of failure, simplifies file share management, and enables seamless site failover for branch offices.

This guide covers the complete DFS implementation lifecycle: namespace architecture, replication topology design, GPO integration, health monitoring, troubleshooting stuck replication, and disaster recovery. We include PowerShell automation for every major operation and decision matrices tested across dozens of enterprise deployments.

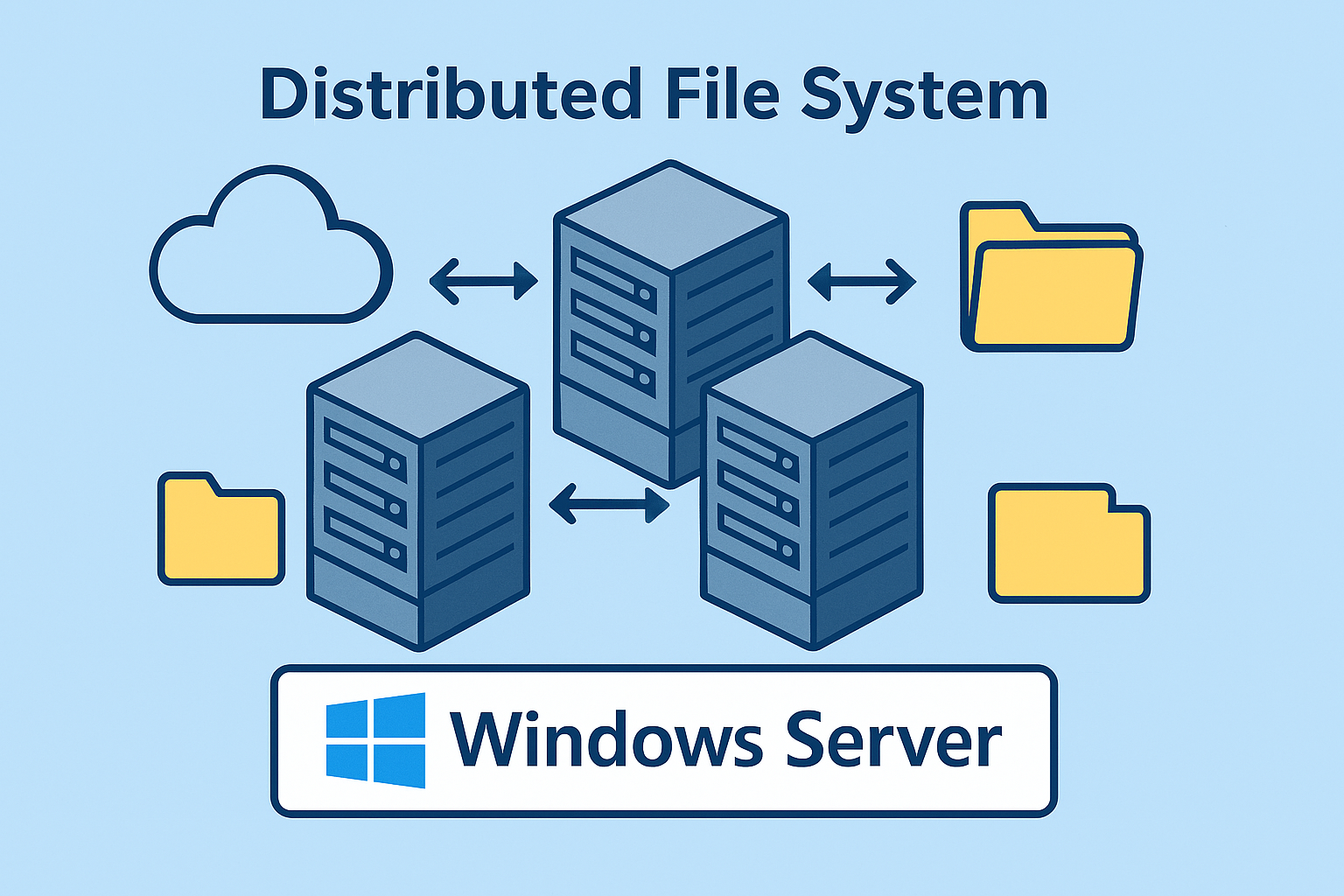

DFS Topology
DFS Topology

Why DFS Matters in Active Directory Environments

In modern enterprises, file services must span multiple sites, survive server failures, and provide consistent user experience regardless of location. Traditional file shares create single points of failure where users access \\server\share directly—if the server fails, users lose access until IT manually redirects them to a backup. Branch office users connecting to datacenter file servers experience slow performance over WAN links, and disaster recovery requires manual reconfiguration of user mappings, scripts, and application paths.

DFS solves these problems with two integrated technologies working in tandem:

Technology Purpose Business Value
DFS Namespace (DFS-N) Provides a virtual folder structure (e.g., \\domain.com\files) that redirects users to the nearest available file server Eliminates single points of failure. When a server fails, DFS automatically redirects users to surviving targets with no user intervention required
DFS Replication (DFS-R) Multi-master replication engine that keeps folder contents synchronized across multiple servers using Remote Differential Compression (RDC) Replicates only changed file blocks (not entire files) over WAN links, enabling efficient multi-site file access and automatic site failover

But DFS isn't just about general file shares—it's foundational to Active Directory itself. Active Directory depends on DFS-R for SYSVOL replication, which contains Group Policy Objects (GPOs), login scripts, and other critical domain data. Without properly functioning DFS-R, Group Policy fails to replicate across domain controllers, causing inconsistent policy enforcement and authentication problems. Understanding DFS implementation, monitoring, and troubleshooting is therefore not optional for AD administrators—it's a core competency required to maintain a healthy domain.

DFS Namespace Architecture

A DFS Namespace is a virtual folder hierarchy that maps logical paths to physical file share targets. Users access \\domain.com\PublicFolders\Finance instead of \\FileServer01\Finance$. The namespace server resolves the logical path to the actual share location.

Namespace Types

Windows Server supports two namespace types, each with different characteristics:

Feature Domain-Based Namespace (recommended) Stand-Alone Namespace
Path Format \\domain.com\namespace\folder \\server\namespace\folder
Storage Location Active Directory Local Server Registry
High Availability Yes - Multiple namespace servers load-balance and failover No - Single server unless clustered
Maximum Folders Up to 50,000 folders per namespace Maximum 5,000 folders

Namespace Server Placement

Namespace servers respond to client referral requests and provide the list of available file share targets. Proper placement is critical for performance and availability. Clients cache referrals, but initial lookups and cache refreshes depend on healthy namespace servers.

Deployment Model Configuration Use Case Availability Impact
Minimum (2 servers) 2 namespace servers per domain Small single-site environments Basic redundancy. If one server fails, the other handles all referral requests. Place on domain controllers or dedicated file servers
Recommended (per-site) 1 namespace server per site Multi-site enterprises (most common) Eliminates cross-site referrals during normal operations. Site-local namespace server provides fastest response time for clients
High-Scale (load-balanced) Add namespace servers when response time exceeds 100ms Very large sites with >5,000 concurrent users Monitor "DFS Namespace" performance counters. Add servers proactively before performance degrades

War Story: Test Failover Before You Need It

A healthcare provider had perfect DFS-R setup on paper: 3 sites, full mesh topology, healthy replication, namespace servers in each site. During a planned datacenter maintenance window, they failed primary site file servers over to branch site... and discovered branch servers had 100Mbps NICs while datacenter had 10Gbps. Nobody had tested failover performance under load.

Impact: User file operations that took milliseconds in normal operation now took seconds when failed over to branch. 200+ simultaneous users accessing branch file server over 100Mbps link. Complaints flooded IT help desk within minutes. Emergency rollback to datacenter required.

Prevention: Test failover during maintenance windows with realistic user load. Measure actual user performance from multiple sites accessing branch file servers. Upgrade hardware (NICs, disk I/O, CPU) before relying on branch servers for DR. Document expected performance degradation during failover and set stakeholder expectations.

Folder Target Strategy

Each DFS folder can have multiple targets (physical file shares). Clients receive a prioritized list of targets based on Active Directory site configuration:

Target Type Priority When Used
Site-Local Targets Highest Clients always try local site targets first for optimal performance
Failover Targets Medium Other sites with lower cost. Used when local targets unavailable
Target Priority Custom Configure explicit ordering within same site when you have preferred servers

DFS-R and SYSVOL: The Heart of Active Directory

Before discussing general-purpose DFS Replication design, it's critical to understand that Active Directory already uses DFS-R for SYSVOL replication—and this is arguably the most important replication group in your entire domain. SYSVOL contains Group Policy Objects (GPOs), login scripts, and startup/shutdown scripts that control security settings, software deployment, and user environment across the entire domain.

What is SYSVOL and Why It Matters

SYSVOL is a shared folder structure on every domain controller that contains domain-wide data that must be identical across all DCs: Group Policy templates (GPOs), login scripts, and Group Policy Preferences files. SYSVOL is accessed via the `\\domain\SYSVOL` share, and the `\Scripts` subfolder is additionally shared as `\\domain\NETLOGON` for backward compatibility with legacy login scripts. Any DC can serve SYSVOL content, but all DCs must maintain synchronized copies via DFS-R (or FRS on legacy domains).

When SYSVOL replication fails or lags, the impact is immediate and severe:

SYSVOL Replication Failure Symptoms

Symptom Root Cause Business Impact
Group Policy not applying consistently Different DCs serving different GPO versions Security settings not enforced, users get inconsistent desktop settings
Login scripts fail intermittently Script exists on some DCs but not others Drive mappings fail, authentication scripts don't run
GPO changes don't propagate SYSVOL backlog prevents replication Emergency security patches via GPO not deployed domain-wide
Event ID 13508 / 13509 SYSVOL stuck in JRNL_WRAP_ERROR state Replication completely stopped, manual intervention required

SYSVOL Replication: FRS vs DFS-R Migration

Windows Server 2003 R2 and earlier used File Replication Service (FRS) for SYSVOL. Starting with Windows Server 2008, Microsoft introduced DFS-R as the replacement. If your domain was upgraded from Server 2003, you may still be using FRS for SYSVOL—and you should migrate immediately, as FRS is deprecated and unsupported.

Feature FRS (Legacy) DFS-R (Modern)
Replication Method Full-file replication Block-level replication (RDC)
Bandwidth Efficiency Poor - replicates entire files Excellent - replicates only changed blocks
Recovery from Corruption Requires authoritative/non-authoritative restore Auto-recovery with health checks
Support Status ❌ Deprecated - removed in Server 2019+ ✅ Fully supported
Monitoring Tools Limited (FRSDiag, UltraSound) Comprehensive (Get-DfsrBacklog, health reports)

Check Your SYSVOL Replication Method

Run this PowerShell command on a domain controller to determine current SYSVOL replication method:

dfsrmig /GetGlobalState

States:

  • 0 (Start): Using FRS - migrate immediately!
  • 1 (Prepared): Migration in progress
  • 2 (Redirected): Migration in progress
  • 3 (Eliminated): Using DFS-R (correct state)

Recovering from JRNL_WRAP_ERROR (SYSVOL Replication Stopped)

Event IDs 13508 and 13509 indicate that DFS-R has entered a "journal wrap" error state on the affected DC. This occurs when the USN journal wraps (runs out of space or becomes corrupt) and DFS-R can no longer track changes reliably. SYSVOL replication stops completely on the affected DC until manual recovery is performed.

JRNL_WRAP_ERROR Recovery Procedure

Symptoms: Event 13508 or 13509 in DFS Replication log. SYSVOL backlog shows no activity. `Get-DfsrState` shows JRNL_WRAP_ERROR.

Recovery Steps (must be performed on affected DC):

  1. Stop DFSR service: Stop-Service DFSR
  2. Set authoritative flag: Run regedit and navigate to HKLM\SYSTEM\CurrentControlSet\Services\DFSR\Parameters\SysVols\Seeding SysVols\<Domain GUID>. Set D2 DWORD value to 1 (this marks the DC as non-authoritative for SYSVOL—it will sync from partners).
  3. Start DFSR service: Start-Service DFSR
  4. Monitor initial sync: Check Event 4114 (initial sync complete) and 4602 (replication resumed). This can take 15-60 minutes depending on SYSVOL size.
  5. Verify SYSVOL share: Test-Path \\$env:COMPUTERNAME\SYSVOL should return True after sync completes.

Root Causes: Disk space exhaustion on system drive, antivirus interference with USN journal, disk I/O errors, improper DC shutdown (power loss).

Prevention: Monitor system drive free space (alert at <15% free). Exclude DFS-R database and staging from real-time AV scanning. Use proper shutdown procedures for DCs.

SYSVOL Monitoring Best Practices

SYSVOL health checks should be part of your daily domain controller monitoring. Unlike general-purpose file shares, SYSVOL replication issues require immediate attention because they affect domain-wide operations.

Important: SYSVOL replication follows Active Directory site topology and replication schedules. Connection objects between DCs (managed by the Knowledge Consistency Checker) determine SYSVOL replication paths. If AD replication fails, SYSVOL replication also fails. For detailed guidance on site topology design and troubleshooting AD replication issues, see Active Directory Sites and Services.

Check PowerShell Command Healthy Result Action if Failed
SYSVOL Share Exists Test-Path \\$env:LOGONSERVER\SYSVOL True Check DFSR service status, verify SYSVOL folder permissions
DFSR Service Running Get-Service DFSR Status = Running Start service, check Event Log for errors
SYSVOL Backlog Get-DfsrBacklog -GroupName 'Domain System Volume' -FolderName 'SYSVOL Share' 0-10 files If >100 files: investigate replication schedule, staging quota, network connectivity
SYSVOL Replication State Get-DfsrState -ComputerName $env:COMPUTERNAME No errors in output Check for JRNL_WRAP_ERROR, database corruption events
GPO Version Consistency Get-GPO -All | Select DisplayName, @{n='ADVersion';e={$_.Computer.DSVersion}}, @{n='SysvolVersion';e={$_.Computer.SysvolVersion}} | Where-Object {$_.ADVersion -ne $_.SysvolVersion} No results (all GPOs have matching AD and SYSVOL versions) Version mismatch indicates SYSVOL replication lag or failure. Force replication: repadmin /syncall /AdeP. Check DFSR service and backlog.

War Story: SYSVOL Replication Failure Took Down Global GPO Deployment

A financial services company pushed emergency security GPO to disable vulnerable SMBv1 protocol across 5,000 workstations. The GPO was created on DC01, but SYSVOL replication had been failing silently for 3 weeks due to staging quota exhaustion. Branch offices authenticated against DC02/DC03 which never received the new GPO. Only headquarters workstations (authenticating to DC01) got the security update.

Root Cause: SYSVOL staging quota remained at default 4GB. Large driver packages in Group Policy Preferences exhausted quota. Backlog grew to 2,000 files but no monitoring was in place.

Fix: Increased SYSVOL staging quota to 16GB on all DCs, removed unnecessary driver packages from GPOs, implemented daily SYSVOL backlog monitoring.

Prevention: Monitor SYSVOL backlog daily. Alert if backlog >50 files. Set staging quota to 16GB minimum (32GB for domains with many GPOs or large Group Policy Preferences).

SYSVOL Authoritative Restore (D2 vs D4)

When SYSVOL data is corrupted or accidentally deleted on all DCs (or you need to roll back GPO changes domain-wide), standard backup restore is insufficient because other DCs will replicate their versions back to the restored DC. You must perform an authoritative restore to force the restored DC's SYSVOL content to overwrite all replication partners.

Restore Type Registry Value Use Case Behavior
D2 (Non-Authoritative) Set D2=1 in DFSR registry Single DC corruption or JRNL_WRAP_ERROR recovery DC syncs SYSVOL from partners (incoming replication). Use when other DCs have good data.
D4 (Authoritative) Set D4=1 in DFSR registry All DCs have corrupt/outdated SYSVOL, or rolling back accidental GPO deletion domain-wide DC marks its SYSVOL as authoritative and pushes content to all partners (outgoing replication). Overwrites partner data.

D4 Authoritative Restore Procedure

WARNING: D4 restore overwrites SYSVOL on all domain controllers. Any GPO changes made since the backup will be lost. Only use D4 when all DCs have corrupt data or you're intentionally rolling back changes.

Steps (perform on DC with good backup):

  1. Stop DFSR on all DCs: Invoke-Command -ComputerName (Get-ADDomainController -Filter *).Name -ScriptBlock {Stop-Service DFSR}
  2. Restore SYSVOL from backup on the authoritative DC (restore to %SystemRoot%\SYSVOL\domain)
  3. Set D4 flag on authoritative DC: Navigate to HKLM\SYSTEM\CurrentControlSet\Services\DFSR\Parameters\SysVols\Seeding SysVols\<Domain GUID>. Create DWORD D4 = 1.
  4. Set D2 flag on all other DCs: Same registry path, create DWORD D2 = 1 (tells them to accept incoming authoritative data).
  5. Start DFSR on authoritative DC first: Start-Service DFSR
  6. Wait for Event 4114: Indicates initial sync complete (typically 5-15 minutes depending on SYSVOL size).
  7. Start DFSR on remaining DCs: They will sync from authoritative DC. Monitor Event 4602 (replication resumed).
  8. Verify GPO version consistency: Run the GPO version check from monitoring table above across all DCs.

Post-Restore Validation:

  • Verify SYSVOL share accessible on all DCs: Test-Path \\DC-NAME\SYSVOL
  • Check backlog is zero: Get-DfsrBacklog -GroupName 'Domain System Volume'
  • Force Group Policy refresh on test client: gpupdate /force
  • Generate RSOP report to confirm GPOs applying: gpresult /h gpresult.html

SYSVOL Disk Space Requirements & Capacity Planning

SYSVOL resides on the system drive by default (%SystemRoot%\SYSVOL), sharing space with the OS, page file, and system logs. Insufficient SYSVOL space causes replication failures and DC instability.

Domain Size / GPO Complexity Recommended SYSVOL Size Notes
Small domain (<50 GPOs, minimal Group Policy Preferences) 2-5GB Default install size typically sufficient. Monitor growth quarterly.
Medium domain (50-200 GPOs, moderate GPP usage) 5-15GB Allow for driver packages, software deployment scripts, and GPP files.
Large domain (>200 GPOs, heavy GPP with drivers/files) 15-50GB Group Policy Preferences can contain large driver CABs, MSI installers, and registry exports.
Enterprise with centralized software deployment via GPO 50GB+ Consider moving large software packages to dedicated DFS shares instead of embedding in GPP.

Capacity Monitoring Commands:

SYSVOL Growth Best Practices

  • Review GPO size quarterly: Identify and remove obsolete GPOs. Use Get-GPO -All | Select DisplayName, ModificationTime, @{n='Size';e={(Get-ChildItem "$env:SystemRoot\SYSVOL\domain\Policies\$($_.Id)" -Recurse | Measure-Object -Property Length -Sum).Sum / 1MB}} to find large GPOs.
  • Avoid large files in GPP: Don't embed multi-MB driver packages or software installers in Group Policy Preferences Files. Use DFS shares or software deployment tools instead.
  • Clean up old ADMX templates: Remove legacy .adm files from %SystemRoot%\SYSVOL\domain\Policies\PolicyDefinitions if using Central Store.
  • Alert at 70% system drive capacity: SYSVOL shares the system drive with OS, page file, logs, and staging area. Insufficient space causes JRNL_WRAP_ERROR.
  • Document SYSVOL location: If you moved SYSVOL during DC promotion (non-default), document the path in runbooks for backup/recovery procedures.

DFS Replication Design for File Shares

DFS Replication (DFS-R) is a multi-master replication engine that synchronizes folder contents across multiple servers. Unlike older FRS (File Replication Service), DFS-R uses Remote Differential Compression (RDC) to replicate only changed file blocks instead of entire files.

Replication Topologies

Choose the right topology based on site count, WAN bandwidth, and data change patterns:

Topology Description Best For Advantages Limitations
Full Mesh Every member replicates directly with every other member 2-10 sites with good WAN connectivity
  • Fastest convergence — changes replicate in one hop
  • Maximum redundancy — multiple replication paths
  • Simple troubleshooting — direct connections between all members
  • Connection count scales O(n²): 10 members = 45 connections
  • Bandwidth intensive for sites with limited WAN capacity
  • Not suitable for >10-12 members due to connection overhead
Hub-and-Spoke Branch sites replicate only with central hub(s) >10 sites, limited WAN bandwidth, centralized hub sites
  • Minimal connection count: n-1 connections for n members
  • Bandwidth efficient — spoke-to-spoke traffic goes through hub
  • Scales to hundreds of members
  • Slower convergence — changes require two hops (spoke → hub → spoke)
  • Hub is critical path — hub failure blocks spoke-to-spoke replication
  • Hub servers require higher CPU/memory/disk I/O capacity

Replication Schedule & Bandwidth Management

DFS-R provides granular control over when and how fast replication occurs. Balance business requirements (data freshness) against infrastructure constraints (WAN bandwidth availability):

Strategy Use Case Configuration Trade-offs
Full Replication (24x7) High-bandwidth links, critical data requiring immediate replication No schedule restrictions, no bandwidth throttling (default) Fastest convergence but may consume WAN bandwidth during business hours
Scheduled Replication Limited WAN bandwidth, replication can wait for off-peak hours Restrict replication to nights/weekends (e.g., 6PM-6AM) Preserves bandwidth for business traffic, but increases replication latency
Bandwidth Throttling Need 24x7 replication but must cap maximum bandwidth usage Limit replication speed in Kbps (e.g., throttle to 5 Mbps on 10 Mbps link) Slower replication but predictable bandwidth consumption, good for QoS compliance
Hybrid (Schedule + Throttle) Complex WAN with different bandwidth availability by time of day Throttle during business hours (e.g., 2 Mbps 8AM-6PM), unrestricted nights/weekends Best balance for most enterprises—responsive during the day, catch up at night

Primary Member Selection

During initial sync, DFS-R must choose which member's content is authoritative. The primary member designation determines the "winning" copy—this is a one-time decision with permanent consequences if chosen incorrectly:

Primary Member Selection is Critical

Concept Explanation Impact
Primary Member The server with the authoritative copy of data. Its content is replicated to all other members during initial sync Choose the member with the most complete, up-to-date data. Usually the production file server currently in use
Critical Choice All other members will be OVERWRITTEN with the primary member's content If you designate an empty server as primary, all existing data on other members will be deleted! Verify carefully before proceeding
One-Time Operation After initial sync completes, primary member designation no longer matters All members become equal peers in multi-master replication. You can't accidentally "lose" data after initial sync

Implementation Steps

Implement DFS using a phased approach to minimize risk and validate each component before adding complexity:

Phase 1: Namespace Creation

Create the domain-based namespace and add initial folder targets. The script handles prerequisites checks, creates the namespace with Windows Server 2008 mode for maximum compatibility and scale, establishes the underlying file share, and configures initial folder structure with proper permissions.

Phase 2: Replication Group Setup

Create the DFS-R replication group with appropriate topology. This comprehensive script supports both Full Mesh (for ≤10 members) and Hub-and-Spoke topologies (for larger deployments). It configures bidirectional replication connections, designates the primary member for initial sync, and establishes folder-to-member mappings with proper local paths.

Phase 3: Validation & Monitoring

Verify replication health and monitor backlog across all member pairs. This script provides comprehensive backlog reporting with threshold-based health assessment (warning at 100 files, critical at 500 files), CSV export capability for trend analysis, and actionable recommendations when issues are detected.

Health Monitoring & Maintenance

DFS-R requires proactive monitoring to detect replication issues before users notice. Unlike DNS or DHCP where failures are immediately obvious, DFS-R can silently accumulate backlog for days or weeks before users report "file not found" errors or stale data. Establish regular monitoring cadence to catch problems early.

Key Health Indicators

Monitor these metrics to maintain healthy DFS-R replication. Thresholds are based on production environments—adjust for your specific workload patterns:

Metric Normal Range Warning Threshold Critical Threshold Action Required
Backlog File Count 0-50 files per connection 100-500 files >500 files Investigate change patterns, check network connectivity, verify replication schedule allows sufficient time
Staging Quota Usage <60%< /td> 60-80% >80% Increase staging quota before exhaustion (replication stalls at 100%). Clean old staging files, review 32 largest files rule
Conflict and Deleted Files <50 files 50-200 files >200 files Users editing same files simultaneously. Implement file locking, revise workflow to reduce conflicts, clean old conflicted files
DFSR Service Status Running Stopped (manual) Stopped (unexpected) Check Event Log for crash reasons, verify startup type is Automatic, restart service and monitor
Replication Latency <5 minutes 5-30 minutes >1 hour Check WAN link utilization, verify bandwidth throttling not too restrictive, investigate backlog

Automated Health Checks

Run comprehensive health validation across all replication group members. This script checks service status, staging quota utilization, conflict counts, and optionally scans Event Log for recent errors. Use output to generate daily health reports and track trends over time.

Critical Event IDs for DFS-R Monitoring

Configure alerting on these Event IDs in the "DFS Replication" Event Log. Use Windows Event Forwarding or SIEM integration to centralize monitoring across all replication members:

Event ID Severity Description Response Required
4104 Informational DFS-R successfully initialized None - normal startup event
2104 Informational Initial sync completed successfully None - replication established
4012 Critical Staging quota exhaustion warning Increase staging quota immediately, clean old files
2212 Critical Database corruption detected Rebuild database (requires full resync)
5002 Warning Replication stopped due to dirty shutdown Investigate unexpected shutdown cause, restart service
2102 Informational Auto-recovery from dirty shutdown succeeded None - automatic recovery successful
4614 Warning Service unable to replicate due to insufficient disk space Free disk space on affected member
6002 Critical Service detected database corruption Database rebuild required

Operations & Maintenance Schedule

Establish regular maintenance cadence to keep DFS-R healthy. These tasks are based on production experience across dozens of enterprises—adjust frequencies based on your environment's change rate and risk tolerance.

Daily Tasks

# Task Method Expected Outcome Action if Failed
1 Check SYSVOL backlog Get-DfsrBacklog -GroupName 'Domain System Volume' 0-10 files Investigate if >50 files, escalate if >100 files
2 Verify DFSR service running on all members Get-Service DFSR -ComputerName (Get-DfsrMember).ComputerName All services Status=Running Start service, check Event Log for crash cause
3 Check staging quota utilization Run Test-DfsReplicationHealth.ps1 All members <60% staging usage Clean old staging files, increase quota if consistently high
4 Review DFS Replication Event Log Filter Event Log for Level=Error in last 24 hours 0 errors Investigate errors, prioritize Event IDs 4012, 2212, 6002

Weekly Tasks

# Task Method Expected Outcome Action if Failed
1 Full replication backlog report Run Get-DfsrBacklogReport.ps1 for all replication groups All connections <50 files backlog Identify slow connections, check network/schedule/bandwidth throttling
2 Conflict and Deleted file count Check ConflictAndDeleted folder size on each member <100 files per member Investigate multi-master conflict patterns, consider file locking
3 Database health check Get-DfsrState on all members No corruption warnings If corruption detected, schedule database rebuild during maintenance window
4 Namespace target availability Test DFS path access from multiple sites All targets accessible Check share permissions, network connectivity, namespace server health

Monthly Tasks

# Task Method Expected Outcome Action if Failed
1 Clean ConflictAndDeleted folders Run Repair-DfsReplication.ps1 -Issue ConflictCleanup Files >30 days removed Verify cleanup completed, adjust retention if needed
2 Review staging quota sizing Verify quota holds 32 largest files in replicated folder Quota adequate for workload Increase quota if consistently >60%, decrease if never exceeds 30%
3 Replication performance trending Compare backlog reports month-over-month Backlog stable or decreasing If increasing trend, investigate data growth, bandwidth constraints
4 Verify replication topology Get-DfsrConnection - check all expected connections exist All connections Enabled=True Re-enable disabled connections, investigate why they were disabled

Quarterly Tasks

# Task Method Expected Outcome Action if Failed
1 Test DFS failover Simulate member failure during maintenance window, verify clients fail over Users transparently redirect to surviving targets Review namespace referral settings, check site link costs, verify target priorities
2 Capacity planning review Analyze data growth rate, project 12-month storage needs Adequate capacity for next 12 months Plan storage expansion, consider data archival strategies
3 Replication topology optimization Review connection count vs member count, assess if topology still optimal Topology matches current site count and bandwidth Consider switching Full Mesh→Hub-Spoke if members >10, or vice versa if <5
4 Disaster recovery test Document and test restore procedures for complete data loss scenario Team can restore from backup and re-establish replication within RTO Update DR documentation, conduct additional training, revise procedures

Semi-Annual Tasks

# Task Method Expected Outcome Action if Failed
1 Review and update replication schedules Assess if current schedules align with business hours, WAN usage patterns Replication occurs during off-peak hours without impacting business traffic Adjust schedules based on updated business requirements, WAN capacity changes
2 Security audit Review NTFS permissions on replicated folders, namespace permissions, AD delegation Permissions follow least-privilege principle Remove unnecessary permissions, update delegation model
3 Documentation review Update runbooks, topology diagrams, support contacts Documentation reflects current state Schedule documentation update sprint

Annual Tasks

# Task Method Expected Outcome Action if Failed
1 Windows Server patching coordination Plan server upgrades/patching to minimize replication disruption Members patched with <48 hour replication lag Stagger patching across replication members, avoid patching all hub members simultaneously
2 Architecture review Assess if current DFS architecture meets business needs, identify modernization opportunities Architecture aligned with business strategy Propose architecture changes, migrate to cloud-hybrid DFS if applicable
3 Training and knowledge transfer Conduct DFS operations training for support team, update skill matrix Multiple team members competent in DFS troubleshooting Schedule additional training, document tribal knowledge

As-Needed Tasks

# Trigger Task Priority Notes
1 Event ID 2212 (database corruption) Rebuild DFS-R database on affected member Critical Schedule during maintenance window if possible, requires full resync
2 Backlog >500 files sustained >48 hours Force replication sync, investigate root cause Critical Use Sync-DfsReplication.ps1, may indicate network or configuration issue
3 Adding new site/member to replication group Update topology, configure new connections, designate primary member for initial sync High Test in lab first, monitor initial sync progress closely
4 User reports stale data Check backlog from source member to target member, verify file was actually saved High May indicate application not properly closing files, or permissions issue
5 Site link bandwidth change Review and adjust replication schedule and bandwidth throttling Medium Increase schedule/bandwidth if link upgraded, decrease if bandwidth reduced

Maintenance Best Practices

  • Automate health checks: Schedule Test-DfsReplicationHealth.ps1 and Get-DfsrBacklogReport.ps1 to run daily via Task Scheduler. Email results to ops team.
  • Baseline normal behavior: Establish baseline backlog levels for each replication connection. Alert when values exceed 2x baseline.
  • Track trends over time: Export health metrics to CSV, import to Excel or monitoring platform for trend analysis.
  • Document your environment: Maintain current topology diagrams, runbooks, and escalation procedures. Review quarterly.
  • Test failover regularly: Don't wait for production failure to discover namespace referral problems. Test during scheduled maintenance.

Troubleshooting Common Issues

DFS-R issues typically fall into a few common patterns. Use this decision tree to diagnose and resolve problems:

Symptom: Replication Stuck (High Backlog Not Decreasing)

Backlog remains high or grows despite replication being enabled and scheduled:

  • Check 1: DFSR Service Running?
    • Verify DFSR service status on all members
    • Check Event Viewer → Applications and Services Logs → DFS Replication
    • Look for Event 4104 (service start) or errors preventing service start
  • Check 2: Staging Quota Exhausted?
    • Run Get-DfsrBacklogReport to check staging usage
    • If >80% full, increase quota or clean old staging files
    • Use Repair-DfsReplication -Issue StagingExhaustion to fix
  • Check 3: Network Connectivity?
    • Test-NetConnection between replication partners on port 5722 (RPC)
    • Check firewall rules allow DFS-R traffic
    • Verify DNS resolution of partner server names
  • Check 4: Replication Schedule?
    • Verify replication schedule allows current time window
    • Check if bandwidth throttling is too restrictive
    • Temporarily remove schedule restrictions to test

Forced Replication

When you need to bypass replication schedules and force immediate sync—useful for testing, urgent file updates, or resolving stuck replication. This script triggers immediate replication update and optionally monitors progress until backlog clears.

Database Corruption Recovery

If Event 2212 appears (database corruption), you must rebuild the database. This is a destructive operation that forces complete resynchronization—use only when database health checks confirm corruption and no other recovery options exist.

WARNING: Database Rebuild = Full Resync

Rebuilding the DFS-R database forces the member to perform a complete initial sync. The member will download (or upload) all content from replication partners. For large datasets, this can take hours or days and generate significant WAN traffic during business hours.

Only rebuild the database on one member at a time. If you rebuild multiple members simultaneously, replication will fail because no member has authoritative state. The script below backs up the existing database before deletion for rollback if needed.

Performance Tuning

Optimize DFS-R for your workload characteristics:

Staging Quota Sizing

The staging area temporarily stores files during replication. Insufficient staging quota is the #1 cause of replication stalls in production environments. Size appropriately from the start to avoid emergency quota increases during business hours.

War Story: Staging Quota — Size It Right or Suffer

A financial services client deployed DFS-R with default 4GB staging quota. Within days, replication stalled completely during quarter-end when users uploaded hundreds of large Excel reports simultaneously. Staging area exhausted. Files queued for replication but couldn't be staged. Backlog grew to 15,000 files. Users experienced "phantom writes" where files saved locally but never replicated.

Fix: Increased staging quota to 64GB, cleared staging area, restarted DFSR service. Backlog cleared overnight. Prevention: Set staging quota to hold 32 largest files in replicated folder. For financial data, this was 2-3GB per file × 32 = 64-96GB quota needed.

Workload Type Recommended Quota Rationale
Light Changes
(Office documents, small files)		 4-8GB (default acceptable) Individual files typically <10MB. Default 4GB quota holds 400+ files
General Purpose
(Mixed document types, departmental shares)		 16-32GB Accommodates occasional large files (presentations, PDFs) while maintaining headroom
High-Change / Large Files
(Software deployment, VM templates, CAD files)		 64GB+ Files frequently >1GB. 64GB quota ensures staging doesn't bottleneck replication
SYSVOL 16-32GB minimum Group Policy Preferences can contain large driver packages. Default 4GB causes frequent staging exhaustion

Sizing Formula: Staging quota should hold the 32 largest files in your replicated folder. Run this check periodically as data grows:

RDC and Cross-File RDC

Remote Differential Compression (RDC) replicates only changed blocks instead of entire files, dramatically reducing WAN bandwidth consumption for large file updates:

Technology Default State Use Case Performance Impact
RDC (Remote Differential Compression) Enabled by default on Server 2008+ namespaces Reduces bandwidth for large file updates (e.g., VHD, database files, ISO images). Essential for WAN replication Minimal CPU overhead. Reduces bandwidth by 40-90% for files >1MB
Cross-File RDC Disabled by default Detects similar blocks across different files. Useful for multiple VM templates with common base, or multiple versions of same installer Significant CPU overhead. Enable only if you have this specific pattern and CPU capacity to spare

ConflictAndDeleted Cleanup

When two members modify the same file simultaneously, DFS-R resolves the conflict by keeping the "last writer wins" version and moving the other version to ConflictAndDeleted folder. Regular cleanup prevents this folder from consuming excessive disk space.

Retention Strategy Configuration Use Case Trade-offs
Default Retention 60 days Balanced approach for most environments Provides 2 months to recover accidentally lost conflict versions before automatic deletion
Reduced Retention 30 days Environments with good backup/restore processes and limited disk space Frees disk space faster but reduces window for conflict recovery
Extended Retention 90+ days Users frequently request recovery of conflicted versions Longer recovery window but consumes more disk space
Manual Cleanup Run Repair-DfsReplication -Issue ConflictCleanup monthly All environments (supplement automatic cleanup) Ensures conflicted files don't accumulate indefinitely

War Story: Don't Replicate Everything

A manufacturing company added their entire file server (5TB, 2 million files) to a single replication group. Initial sync took 3 weeks and consumed all WAN bandwidth, bringing business applications to a crawl. VoIP calls dropped. VPN tunnels timed out.

Root Cause: Replicating temp files, user cache, Outlook PST files, and archived data that didn't need multi-site access. ConflictAndDeleted folders grew to 100GB because users had PST files open simultaneously across sites.

Fix: Split into multiple replication groups. Only replicated active/shared data (~500GB). Used file screening to exclude *.tmp, *.bak, *.pst, ~*.xlsx. Moved archived data to separate non-replicated shares.

Prevention: Analyze data before replication. Only replicate what users actually need in multiple sites. Use DFS Namespace for location abstraction even if you don't need replication.

Disaster Recovery

DFS-R provides automatic site failover, but you still need procedures for catastrophic scenarios:

Site Failure Scenarios

The matrix below summarizes common failure modes, their impact, and concise recovery actions. Assumes domain-based namespaces (stored in AD), at least two namespace servers across sites, and replication groups with two or more members.

Scenario Affected Components User Impact Namespace Behavior Replication Impact Recovery Actions (summary) RPO/RTO Notes
Single Member Failure One replication member and its share target Minimal if alternate targets exist; clients are referred to healthy targets Failed target excluded from referrals automatically Backlog accumulates on failed member only; partners continue replicating
  • Rebuild/replace failed server
  • Rejoin to replication group (initial sync from partners)
  • Re-add as namespace target after healthy
 RPO: 0 (other members hold latest). RTO: rebuild + initial sync duration
Primary Site Failure
(All members in site down)		 Namespace servers and replication members in primary site Varies: If no namespace server in surviving site, DFS paths fail to resolve With namespace servers in surviving site, clients fail over automatically Replication to failed site pauses; surviving-site members continue locally
  • Add/restore namespace server(s) in surviving site if absent
  • Verify AD replication and client path resolution
  • When site returns, monitor backlog and disk space closely
 RPO: 0 for surviving members. RTO depends on namespace availability across sites
Complete Data Loss
(All members destroyed)		 All replication members; possibly namespace targets Data unavailable until restore; namespace may resolve to offline targets Paths may exist but targets are down; remove/bypass broken targets temporarily Requires authoritative restore; full initial sync to all rebuilt members
  • Rebuild servers and join domain
  • Add to replication group and restore data to one member
  • Mark restored member authoritative; start others afterwards
  • See “Authoritative Restore Procedure” below
 RPO: age of last good backup. RTO: restore time + WAN resync window

Authoritative Restore Procedure

When you restore data from backup and need to overwrite all replication partners:

  1. Stop DFSR service on all members
  2. Restore data to one member (the member you want to be authoritative)
  3. Mark member as authoritative:
  4. Start DFSR service on authoritative member
  5. Wait for DFSR to update AD (5-10 minutes)
  6. Start DFSR service on remaining members (they will sync from authoritative member)

Migration Strategies

Migrate from traditional file shares to DFS with minimal user disruption:

In-Place Migration (No Downtime)

  1. Create DFS namespace and add existing file share as first target
  2. Test namespace access — verify \\domain.com\namespace\folder resolves to \\server\share
  3. Update user mappings via GPO logon scripts (gradual rollout by OU)
  4. Monitor access logs — once all users migrated to DFS path, old UNC paths can be deprecated
  5. Add replication members (optional) — once users migrated to namespace, add additional file servers and configure DFS-R

Staged Migration (New Infrastructure)

  1. Build new file servers with increased capacity/performance
  2. Create DFS namespace pointing to new servers (initially empty)
  3. Copy data to new servers using Robocopy with /MIR /COPYALL /DCOPY:DAT /R:1 /W:1
  4. Configure DFS-R between new servers (optional for multi-site)
  5. Cut over users — update GPO to map drives to new DFS paths
  6. Decommission old servers after validation period (30-60 days)

Decision Matrix: When to Use DFS

Not every file share scenario requires DFS. Use this matrix to determine appropriate approach:

Scenario Use DFS Namespace? Use DFS Replication? Rationale
Single site, single server ❌ No ❌ No No HA benefit. Backup alone provides adequate DR.
Single site, clustered file servers ✅ Optional ❌ No Failover clustering provides HA. DFS-N optional for simplified paths.
Multiple sites, read-only content ✅ Yes ✅ Yes Classic DFS use case. Local site access, automated replication.
Multiple sites, high-change content ✅ Yes ⚠️ Evaluate Multi-master conflicts increase. Consider if change patterns allow stale reads.
Departmental shares (HR, Finance) ✅ Yes ✅ Optional DFS-N simplifies share management. DFS-R only if multi-site requirement.
User home drives ❌ No ❌ No User data is single-site. Use folder redirection + backup instead.
Software distribution (SCCM/MDT) ✅ Yes ✅ Yes Ideal: large files, read-mostly, multi-site distribution.

Recommended Reading & Resources

Microsoft Official Documentation

Related EguibarIT Articles

Summary & Key Takeaways

Essential DFS Implementation Principles


1. SYSVOL is Critical Infrastructure
Active Directory relies on DFS-R for SYSVOL replication. SYSVOL failures break Group Policy domain-wide. Monitor SYSVOL backlog daily—it's not optional. Increase staging quota to 16-32GB minimum (default 4GB causes frequent exhaustion).

2. Choose the Right Topology for Your Scale
Full Mesh (≤10 members): fastest convergence, maximum redundancy, simple troubleshooting. Hub-and-Spoke (>10 members): scales to hundreds of members, bandwidth-efficient, but slower convergence and hub becomes critical path.

3. Staging Quota is the #1 Replication Failure Cause
Size to hold 32 largest files in replicated folder. Monitor usage daily. Alert at 60% utilization. Increase proactively before reaching 80%. Replication stalls at 100% exhaustion.

4. Monitor Backlog Actively
Normal: <50 files per connection. Warning: 100-500 files (investigate change patterns). Critical:>500 files (replication not keeping pace with changes—immediate action required).

5. Test Failover Before Production Failure
DFS provides automatic failover, but you must test it. Measure actual user performance from branch sites accessing branch file servers during scheduled maintenance. Upgrade hardware before relying on it for DR.

6. Primary Member Selection is Irreversible
During initial sync, all non-primary members are OVERWRITTEN with primary member's content. Choose carefully—designating an empty server as primary will delete data on other members. After initial sync completes, all members become equal peers.

7. Establish Regular Maintenance Cadence
Daily: SYSVOL backlog, DFSR service status. Weekly: Full backlog reports, conflict counts. Monthly: ConflictAndDeleted cleanup, staging quota review. Quarterly: Failover testing, topology optimization.

8. Don't Replicate Everything
Analyze data before enabling replication. Only replicate what users actually need across multiple sites. Exclude temp files (*.tmp), backup files (*.bak), user cache, and archived data. Use file screening to prevent replication of unnecessary content.

9. Authoritative Restore for Data Loss
Complete data loss requires authoritative restore: restore data to one member from backup, mark as authoritative, sync to all partners. Only rebuild database on one member at a time—rebuilding multiple members simultaneously breaks replication.

10. Automation is Non-Optional
Manual DFS-R management doesn't scale. Use the PowerShell scripts provided: namespace creation, replication group setup, backlog monitoring, health checks, and repair automation. Schedule health checks via Task Scheduler, export to CSV for trend analysis.
